PF-03

φ4.4 type. Less influenced from surrounding metal by shield type

PF-03
PF-03

Stable linearity is accomplished even though the dimension of sensitive area is the same size as a target.

The sensor head is φ4.4. Sensor can be customized from wide variety of shape.

Same sensor series

Adaptation converter

Feature・Special order specification

It is less effected by surrounding metal


Temperature drift of sensor is half of our standard sensor.(company's comparison)


Stable linearity is accomplished even though the dimension of sensitive area is the same size as a target.


Sensor length can be customized by request


PF-03 Sensor specification

Adaptation converterCFC-03CFCMS-S
Measuring range0~1mm(α0:0mm)0~1mm(α0:0mm)
Output0~5V(0.2mm/V)0~5V(0.2mm/V)
Resolution1.2μm1.5μm
Linearity±1%/FS±1%/FS
Operating temperature-20℃~+140℃-20℃~+140℃
Temperature characteristics *-20℃~+140℃ ±0.2μm/℃-20℃~+140℃ ±0.2μm/℃
Tightening torque0.78N・m0.78N・m
Weight(g)About 8gAbout 8g
*Above thermal characteristics is reference value

Standard adaptation cable

PC-03YY

PC-03YY

PCT-03NYY

PCT-03NYY

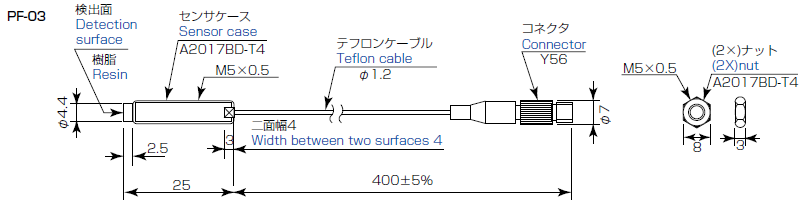

Outer dimension

Outer dimension

Special shape

PF-03-019-XYZ

PF-03-019-XYZ

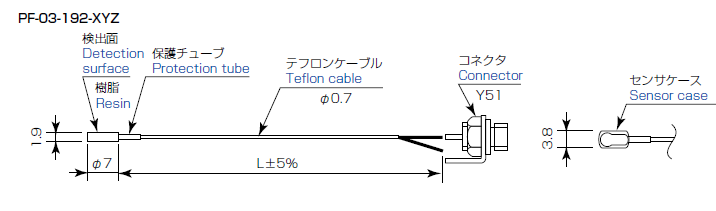

PF-03-192-XYZ

PF-03-192-XYZ

Output characteristics and Linearity

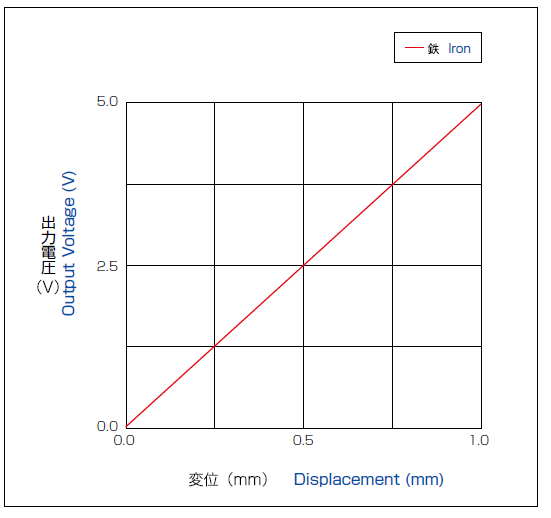

Output characteristics

Output characteristics

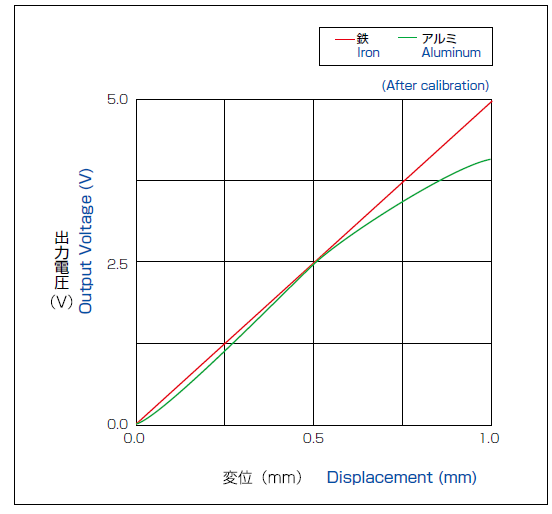

Variation of linearity depending on target materials (After calibration)

Variation of linearity depending on target materials (After calibration)
