78SS-V
Vibration monitoring system with gap sensor
Vibration monitoring system with gap sensor
It is capable of monitoring axis vibration with gap sensor. It has alarm function.
Adaptation converter
AEC-76
Feature・Special oreder specification
Vibration monitoring system with gap sensor
Output alarm signal when vibration value exceed set value
Alarm output is 2 points(HH,HI)
Length between gap sensor and monitor can be extended to several 10m with extension cable
Each setting can be changed easily
Power supply for sensor is built in monitor
78SS-V Monitor specification
| Input level | 1-5V |
| Input frequency | 70Hz～10kHz | *3Hz～10kHz・3Hz～2kHz are settable by option |
| Output pattern | Relay output(C contact point) |
| Output point | 2 points(HI,HH) |
| Alarm type | Upper limit alarm |
| Comparative method | Judge magnitude relation between comparison setting value and display value by CPU(equal NG judgement) |
| Contact point rating | AC250V/0.2A resistance load | DC30V/0.2A resistance load |
| Mechanical life | More than 10 million times |
| Electrical life | More than 30 thousand times |
| Comparative indication | Indicate by lights out of the front LED |
| Comparative determination value | Independent set up at each contact point in the range of 0.000～9999 |
| ON delay | Independent set up at each contact point in the range of 0.0～99.9 sec. |
| Indication mode | ME mode：Indicate vibration value | GA mode：Indicate gap between sensor and target(GA lamp lighting) |
| Indication go out | Light out indication at set time |
| RESET | When RESET terminal is connected with COM terminal, comparative power and indication is capable of self-holding |
| Test mode | It is capable of inputting the set indication, analog output and comparison output (lighting TE lamp) |
| ZERO | Shift the whole for setting to zero |
| Over range warning | Indicate OVER |
| Power supply | AC85～250V 50/60Hz |

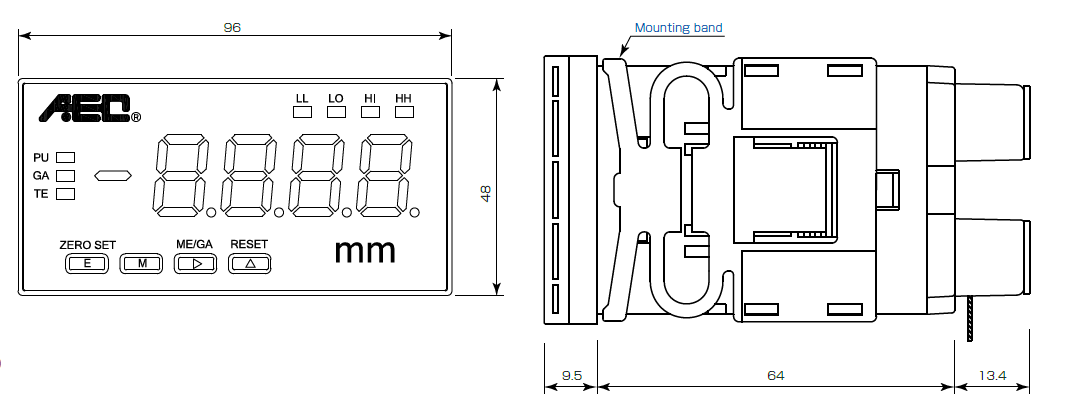

Outer dimension
Configuration
System configuration
Option (Separately sold item)
Extension cable：EC-XYZ-230
Power cable：AC-202-261
Panel drawing for attaching monitor
